Hello friends,
Now I am going to tell you that how we can use Ajax
cascading dropdown list using web services in asp.net. I will be explaining all
steps one by one.
Step 1: First of all I will be design database and create
table and store procedure one by one.
CREATE DATABASE testdata
Now create table State and City-
CREATE TABLE [dbo].[State](
[stateid] [int] IDENTITY(1,1) NOT NULL,
[statename] [nvarchar](100) NULL,
CONSTRAINT
[PK_State] PRIMARY KEY
CLUSTERED
(
[stateid] ASC
)WITH
(PAD_INDEX
= OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS
= ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
CREATE TABLE [dbo].[City](
[Cityid] [int] IDENTITY(1,1) NOT NULL,
[Stateid] [int] NULL,
[Cityname] [nvarchar](100) NULL,
CONSTRAINT
[PK_City] PRIMARY KEY
CLUSTERED
(
[Cityid] ASC
)WITH
(PAD_INDEX
= OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS
= ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
Step 2: Start Visual Studio, And create New Website. Now click on top of root and click on Add New Item
->WebService, this file will be create with name of WebService.asmx in root
and other is in App_code with name of WebService.cs like this.
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Services;
/// <summary>
/// Summary description for WebService2
/// </summary>
[WebService(Namespace
= "http://tempuri.org/")]
[WebServiceBinding(ConformsTo
= WsiProfiles.BasicProfile1_1)]
// To allow this Web Service to be
called from script, using ASP.NET AJAX, uncomment the following line.
//
[System.Web.Script.Services.ScriptService]
public class WebService2 : System.Web.Services.WebService {
public WebService () {
//Uncomment the following line if using designed components
//InitializeComponent();
}
[WebMethod]
public string
HelloWorld() {
return "Hello
World";
}
}
Now we will be write code for select state and city
from the database like as-
using System;
using System.Collections;
using System.Web;
using System.Web.Services;
using System.Web.Services.Protocols;
using System.Data.SqlClient;
using System.Collections.Generic;
using System.Collections.Specialized;
using AjaxControlToolkit;
using System.Configuration;
using System.Data;
/// <summary>
/// Summary description for WebService
/// </summary>
[WebService(Namespace
= "http://tempuri.org/")]
[WebServiceBinding(ConformsTo
= WsiProfiles.BasicProfile1_1)]
[System.Web.Script.Services.ScriptService()]
// To allow this Web Service to be called
from script, using ASP.NET AJAX, uncomment the following line.
//
[System.Web.Script.Services.ScriptService]
public class WebService : System.Web.Services.WebService {
public WebService () {
//Uncomment the following line if using designed components
//InitializeComponent();
}
SqlConnection cmd = new
SqlConnection(ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString);
[WebMethod]
public CascadingDropDownNameValue[]
Bindstate(string knownCategoryValues, string category)
{
cmd.Open();
SqlCommand cmdstate = new
SqlCommand("select * from State", cmd);
SqlDataAdapter dastate = new
SqlDataAdapter(cmdstate);
cmdstate.ExecuteNonQuery();
DataSet dscountry = new
DataSet();
dastate.Fill(dscountry);
cmd.Close();
List<CascadingDropDownNameValue>
statedetails = new List<CascadingDropDownNameValue>();
foreach (DataRow
dtrow in dscountry.Tables[0].Rows)
{
string
StateID = dtrow["Stateid"].ToString();
string StateName = dtrow["Statename"].ToString();
statedetails.Add(new CascadingDropDownNameValue(StateName, StateID));
}
return statedetails.ToArray();
}
[WebMethod]
public CascadingDropDownNameValue[]
Bindcity(string knownCategoryValues, string category)
{
int Stateid;
StringDictionary statedetails =
AjaxControlToolkit.CascadingDropDown.ParseKnownCategoryValuesString(knownCategoryValues);
Stateid = Convert.ToInt32(statedetails["State"]);
cmd.Open();
SqlCommand cmdregion = new
SqlCommand("select * from City where Stateid=@Stateid ",
cmd);
cmdregion.Parameters.AddWithValue("@Stateid",
Stateid);
cmdregion.ExecuteNonQuery();
SqlDataAdapter daregion = new
SqlDataAdapter(cmdregion);
DataSet dsregion = new
DataSet();
daregion.Fill(dsregion);
cmd.Close();
List<CascadingDropDownNameValue>
regiondetails = new List<CascadingDropDownNameValue>();
foreach (DataRow
dtregionrow in dsregion.Tables[0].Rows)
{
string regionID = dtregionrow["CityId"].ToString();
string regionname = dtregionrow["Cityname"].ToString();
regiondetails.Add(new CascadingDropDownNameValue(regionname, regionID));
}
return regiondetails.ToArray();
}
}
Step 3: Now we will be create a page default.aspx,
and write code like this.
<%@ Page
Language="C#"
AutoEventWireup="true"
CodeFile="Default.aspx.cs"
Inherits="_Default"
%>
<%@ Register
Assembly="AjaxControlToolkit"
Namespace="AjaxControlToolkit"
TagPrefix="asp"
%>
<!DOCTYPE html PUBLIC "-//W3C//DTD
XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<asp:ToolkitScriptManager
ID="ToolkitScriptManager1"
runat="server">
</asp:ToolkitScriptManager><asp:UpdatePanel ID="panel1" runat="server"><ContentTemplate>
<fieldset style=" width:500px"><legend>Cascading
Dropdownlist</legend>
<table><tr><td>Select State</td><td><asp:DropDownList ID="ddlstate" runat="server"></asp:DropDownList>
<asp:CascadingDropDown ID="CascadingDropDown1"
runat="server"
Category="State"
TargetControlID="ddlstate"
PromptText="Select
state" LoadingText="Loading
state.." ServiceMethod="Bindstate" ServicePath="WebService.asmx">
</asp:CascadingDropDown>
<%--
<asp:CascadingDropDown ID="CascadingDropDown11"
runat="server" Category="State"
TargetControlID="ddlstate" LoadingText="Loading
state......." PromptText="---Select State---"
ServiceMethod="Bindstate" ServicePath="WebService.asmx">
</asp:CascadingDropDown>--%>
</td></tr>
<tr><td>Select City</td><td> <asp:DropDownList ID="ddlcity"
runat="server"></asp:DropDownList><asp:CascadingDropDown ID="CascadingDropDown2" runat="server"
ParentControlID="ddlstate"
TargetControlID="ddlcity"
LoadingText="Loading
City......." PromptText="---Select city---" Category="City"
ServiceMethod="Bindcity"
ServicePath="WebService.asmx">
</asp:CascadingDropDown></td></tr>
</table></fieldset>
</ContentTemplate></asp:UpdatePanel>
</form>
</body>
</html>

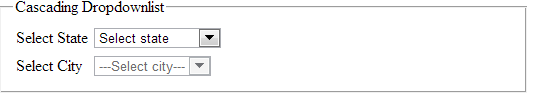

After debugging the website our page will be display
like this.
